Case Erector: The Faster, Smarter Way to Set Up Your Cases
Your Reliable Case Erector Supplier
Packaim Machinery is a leading manufacturer of case erectors and box forming equipment. Our automatic case erectors quickly and reliably set up corrugated boxes for packing, sealing, and shipping applications. Don’t wait to boost your packaging productivity. Choose Packaim Machinery for top-notch case erectors. Contact us to find the perfect solution for your needs.

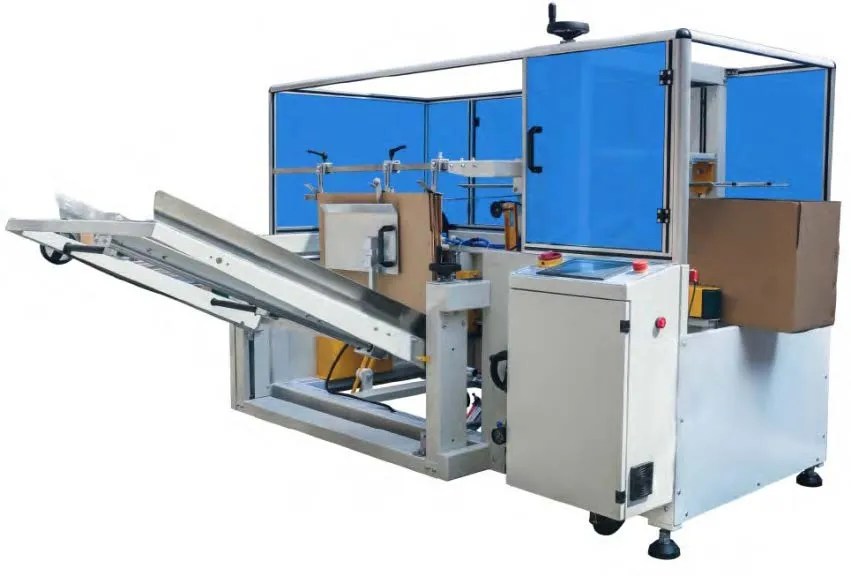

Case Erector PAE-12
- Up to 12 cases per minute
- Case Size Minimum: 250 x 150 x 100 mm
- Case Size Maximum: 450 x 400 x 400 mm

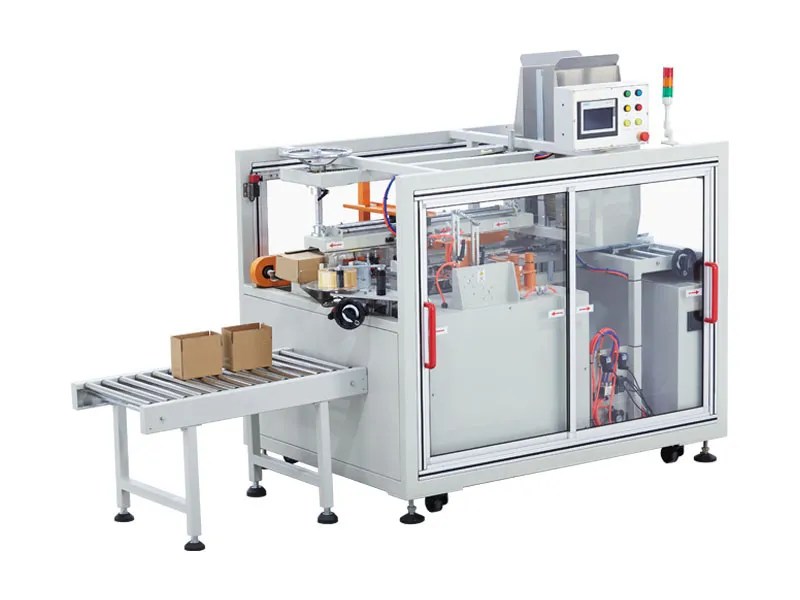

Case Erector PAE-20
- Up to 20 cases per minute, designed for small cases
- Case Size Minimum: 130 x 80 x 80 mm
- Case Size Maximum: 280 x 200 x 200 mm

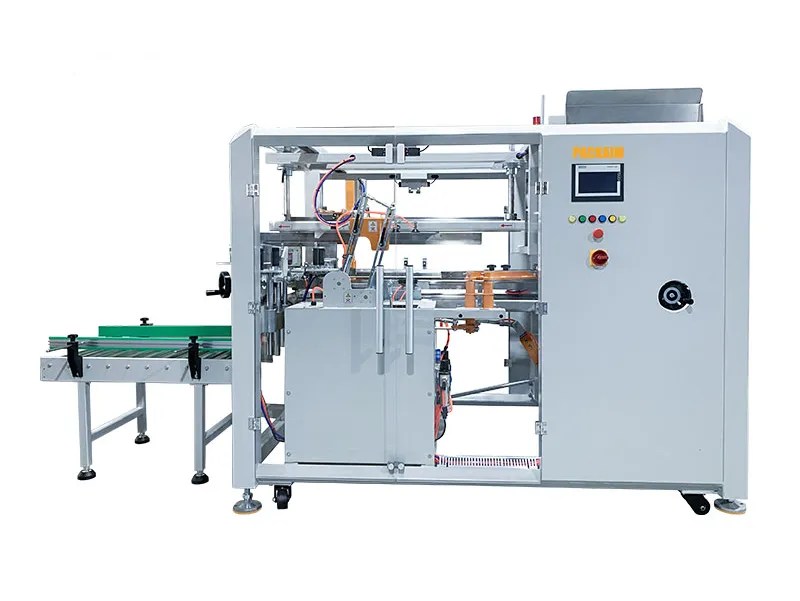

Case Erector PAE-30
- Up to 30 cases per minute
- Case Size Minimum: 240 x 190 x 120 mm
- Case Size Maximum: 510 x 400 x 400 mm

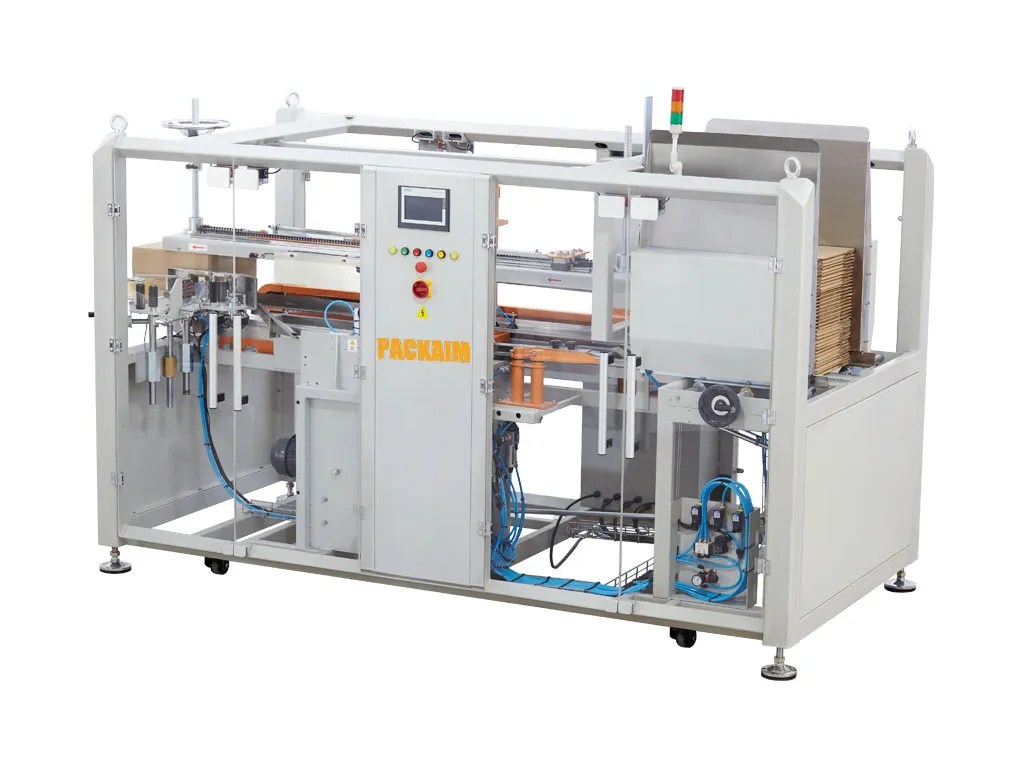

Case Erector PAE-50
- Up to 50 cases per minute
- Case Size Minimum: 250 x 150 x 100 mm
- Case Size Maximum: 450 x 400 x 300 mm

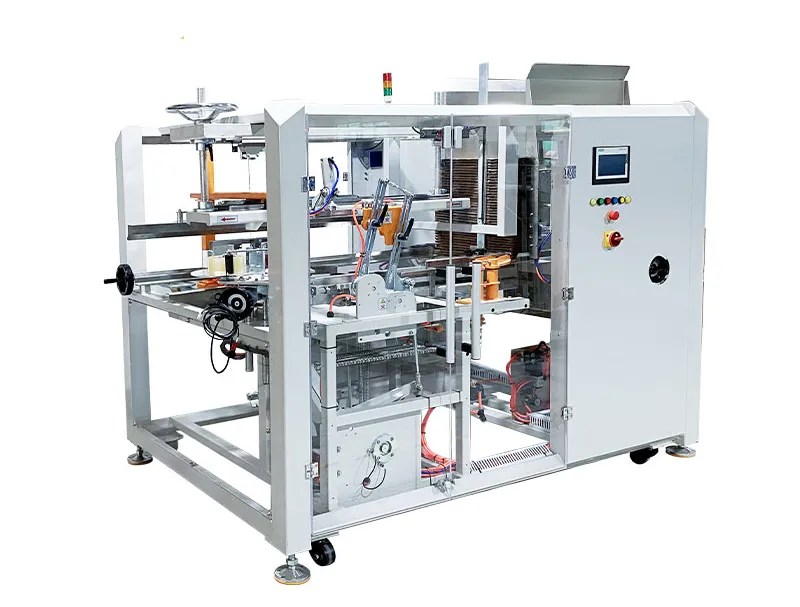

What Are Case Erectors
Case erectors automatically fold flat cardboard blanks into 3D cases and seal the bottom. This eliminates the need for manual box set-up, improving efficiency and reducing labor costs. Packaim’s flexible case formers can integrate into packing lines or work alone. Our sturdy machines fit many production needs with accuracy and high speed.
How Case Erectors Work
First, the flat cardboard sheets are loaded into a magazine or hopper on the case erector. This stores a stack of flat cardboard that will be formed into cases.
Next, the flat cardboard pieces are picked up one-by-one by suction cups or mechanical fingers. These carry each sheet to the start of the case former line.
As the cardboard sheet moves through the machine, plastic or metal arms fold the sheet at specific creases and score lines. This forms the sheet into the shape of a box with four sides and a bottom.
Glue tabs or tape strips may be used to seal the bottom of the box so it stays in the folded-up box shape when exiting the machine.
Some case formers have additional stations that fold in the top flaps after the box is formed. This creates a box with flaps that can be taped shut after products are loaded in.
Sensors help align the cardboard perfectly so each box is uniformly assembled as it goes through the automated folding processes.
The finished boxes exit the case erecting machine in the correct shape and are ready for filling. Using a case erecting machine allows boxes to be formed rapidly and consistently for efficient packaging operations.
Benefits of Case Erectors
- Speed and Efficiency
- Assemble boxes rapidly
- Far faster than manual folding
- Boosts overall packaging productivity
- Consistency and Quality
- Fold boxes identically every time
- Maintains uniform box dimensions
- Results in orderly, sturdy boxes
- Labor Savings
- Reduces labor required for box folding
- Fewer workers needed on the packaging line
- Saves company money on personnel costs
- Flexibility and Versatility
- Adjustable for different box sizes
- Can handle a wide range of box types
- Accommodates various products with one machine
- Space Savings
- Compact footprint on a factory floor
- Frees up space for other uses
- Manual folding requires much more space
- Reliability and Control
- Provides consistent box output when maintained
- Operates for long durations of unmanned
- Gives predictable and stable box supply
Applications of Case Erectors
Case erectors provide a solution to streamline the packaging process, ensuring that products are securely and efficiently packaged for distribution or shipping.
Food Processing
Crackers, cereals, snacks, and other foods are often packaged in cases.
Pharmaceuticals
Pills, medical devices, and healthcare products are packaged in folded cardboard boxes before shipping.
Consumer Goods
Things like appliances, clothing, toys, and electronics use corrugated cases for distribution.
Mail Order Fulfillment
When products are shipped from warehouses to customers, they need protective packaging.
eCommerce
Online retailers need huge numbers of custom boxes to mail out purchased items.
Agriculture
Fruits, vegetables, and other farm products are packed in boxes and crates.
Types of Case Erectors
Horizontal Case Erectors
- Cases move along horizontally on a conveyor belt through the machine
- Folding arms and guides above and below erect the box
- Works well for regular slotted and folder box styles
- Box exits machine flat then can be packed on a horizontal packing line
Vertical Case Erectors
- Cases move vertically in an upright position through the machine
- Folding mechanisms on sides of machine assemble the box
- Allows boxes to exit with top flaps folded for shelf-ready packaging
- Takes up less floor space than horizontal style
- Best for shelf-ready boxes and packaging high products
The FAQs About Case Erector
What industries do you serve with your case erectors?
Packaim Machinery serves a diverse range of industries, including food and beverage, pharmaceuticals, manufacturing, and logistics.
Can your case erectors be customized to fit our specific packaging needs?
Yes, we can customize case formers to handle various case sizes, ensuring they meet your unique requirements.
Can your case erectors be integrated into our existing packaging machines?
Absolutely, our machines are designed for easy integration with your existing packaging machines, enhancing overall efficiency. This includes compatibility with cartoning machines, case packers, case sealers, flow wrappers, and VFFS machines.
Can a case erector handle different case closure methods, such as tape or glue?
Yes, our case erecting machines are versatile and can accommodate various case closure methods, offering flexibility in your packaging process.
Can I see a case erecting machine in action before making a purchase decision?
We can arrange demonstrations or provide video footage of our box erectors in operation to help you make an informed decision.
How can I request a quote for a case erecting machine for my business?
To request a quote, simply contact Packaim Machinery’s sales team through our website or by phone, and we’ll assist you promptly.
Can you provide references or case studies of successful case erector installations in my industry?
Certainly, we can provide references and case studies to showcase our successful installations in your specific industry.
Elevate Your Packaging Operations with Packaim Machinery
Explore our case erectors for hassle-free box setup. Request a demo today!
